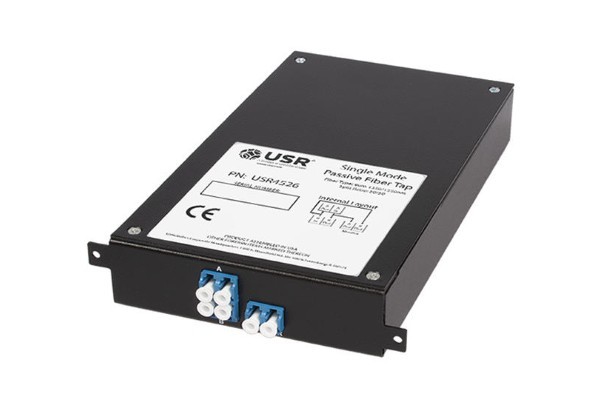

Single-mode Gigabit LC Fiber Network TAP - USR4526
9 micron 50/50 split with LC connectors.
Contact usPermanent inline monitoring and analysis on your 1, 10, 25, 40 and 100 gig single-mode fiber networks.
The USR® Gigabit Fiber TAPs provide an easy method to rapidly and effectively deploy analysis tools to observe and monitor traffic non-intrusively between two devices on a fiber network up to 100G.
By design, fiber TAPs are totally passive, fault-tolerant, invisible to the network, with no power requirements so they will not affect network performance or integrity and can be trusted for permanent installations on a fiber network.
These rock solid devices are ideal for real-time monitoring and analysis of full-duplex traffic between critical network devices such as switches, routers and firewalls and continue to pass errors that aren’t seen using SPAN ports. Topology independent, the TAPs can be used for ATM, Gigabit, OC3-OC48, or SONET protocols and are available for both OS1-2 single-mode and OM1-4 multi-mode fiber networks.
Product availability
USR4526 features
Monitoring and analysis
- Captures and delivers a copy of all traffic to any analysis tool
- 100% visibility into the network - including VLAN tags
- View all traffic on both sides of full-duplex links
- Reduces degradation of switch performance due to port mirroring
- View Layer 1 and 2 errors such as runts and CRC errors not seen when performing network monitoring using SPAN ports
- Full-duplex monitoring
- Best method to measure network link’s performance
- Great for network analysis and troubleshooting, IDS and monitoring applications
Network stability
- Ideal for 24x7 permanent access - eliminating the need to connect tools each time a link needs to be monitored
- Non-intrusive way to connect a network tool
- Minimize traffic delay
- Fault-tolerant design
Secure and reliable
- Passive access means no interference of network traffic
- Invisible on the network - no IP address means additional security
- No single point of failure
- Network traffic will continue to pass uninterrupted
Excellent compatibility
- 50/50 split ratio
- Multi-mode model supports 1G, 10G, and 25G
- Single-mode model supports 1G, 10G, 25G, 40G and 100G
- Supports multiple topologies: Gigabit Ethernet, ATM, OC3-48, and SONET
Simple installation
- Plug and play
- No power required
- Connectors on front for easy access and operation
- Comes with convenient mounting tabs for use with the optional USR4522-RMK 4 unit 1U rackmount
Additional resources
For manuals and documents, videos, firmware and other product information please visit the support page.
USR4526 datasheet
Permanent inline monitoring and analysis on your 25/10/1 Gig multi-mode fiber network - 9 micron 50/50 split with LC connectors
