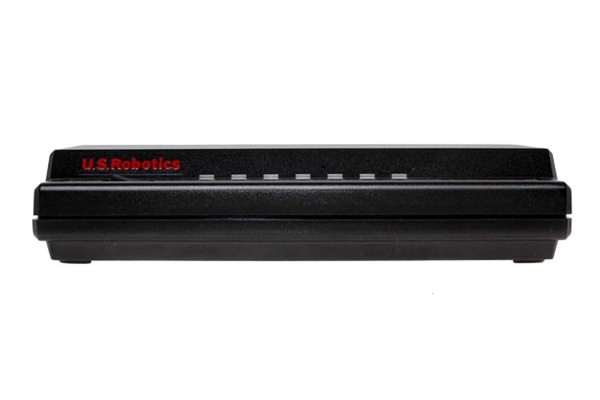

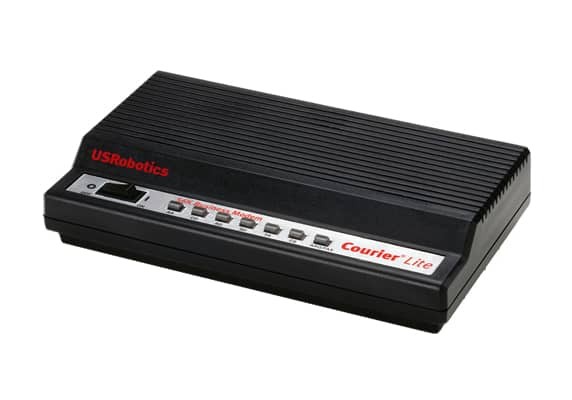

Courier® Lite 56K* Dial-up External Business Modem - Discontinued - USR5686G-PRO
Mission critical dial-up connectivity for business.
Contact usThe USR® Courier® Lite 56K* Business Modem with V.Everything® technology provides secure, reliable analog connections.
Many modems claim reliability, but even fewer offer the multitude of advanced business features like Courier’s carrier loss redial, dialback security, and remote access capabilities. Point of sale, M2M (machine to machine), IoT (Internet of Things) applications as well as out of band management and remote management deployments utilize remote access to configure or troubleshoot. With over 1 million units sold world-wide, the Courier family of modems real-world performance is unmatched. When failure is not an option, you need the world-class capabilities that only come from the top of the USR product line.
Global accessory kits
The Courier Lite Business Modem is approved for use in over 45 countries. Visit the global country approvals and accessory kit guide to view current country approvals and appropriate accessory kits.
For any questions or to inquire about purchasing contact USR.
Accessory kit contents

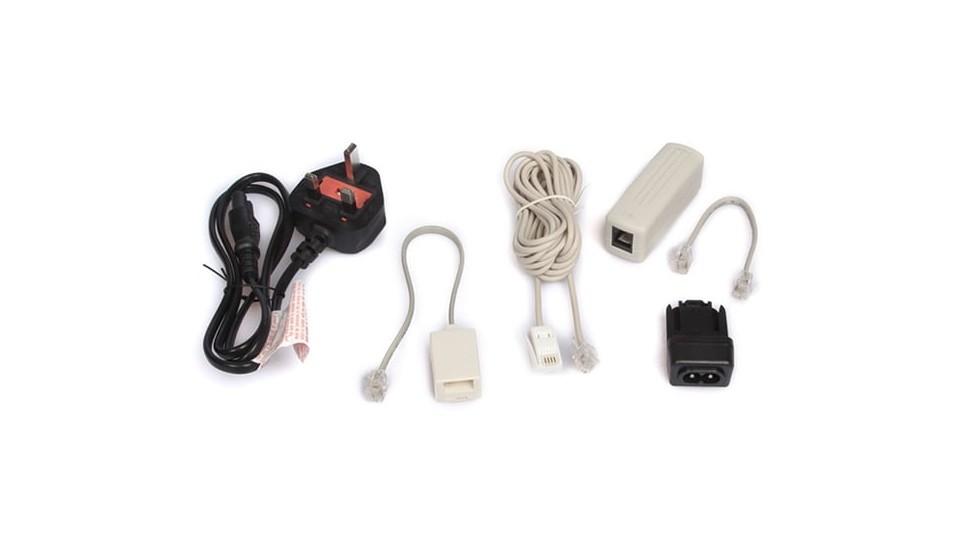

- USR013453A-ACC: UK phone adapter + UK power cord + Dongle + IEC C8 adaptor - MSRP: $23.49
- USR043453A-ACC: UK phone adapter + Loopback + Dongle + Australian power cord + IEC C8 adaptor - MSRP: $23.49
- USR243453A-ACC: Germ,Ital,French phone adapter + Euro power cord + Loopback + Dongle + IEC C8 adaptor - MSRP: $23.49
- USR3453CIEC-ACC: AC power cord C14 to C7 + IEC C8 adaptor- MSRP: $39.49
Product availability
North America
Product Code: USR5686G-PRO
Discontinued
USR5686G-PRO features
Incredible compatibility and flexibility
- V.Everything® Technology provides support for all key communications protocols
- Highly reliable hardware platform supports connections with most international phone systems
- Supports all major operating systems: DOS, Windows including Server and 64 bit, UNIX, Linux — any operating system that supports an RS-232 serial port
Integrated multilayered security
Dial security:
- Autopass works with up to 5 users, and automates logging in between two Couriers by including the password in the V.42 error-control request
- Password Prompting, works with any type of modem, where the host Courier requests a password from those dialing in
- Dialback security checks incoming calls for password authorization and then dials back predefined numbers to assure only appropriate users establish connections
Rock-solid reliability
- Carrier Loss Redial automatically senses, redials, and re-establishes dropped remote connections — creates a virtual always-on connection between two modems over standard analog dial-up lines
- Advanced Line Probing technology finds the fastest connection and maintains connections under poor line conditions
- Brown-out Protection assures you stay connected even in areas with poor power facilities
- Robust, business-oriented design, component selection, testing, and experience to support non-stop operation
Advanced features and functionality
- Remote access and management lets you configure or troubleshoot from almost anywhere
- Use as a secondary connection to troubleshoot, reconfigure, and reboot network devices through a console port

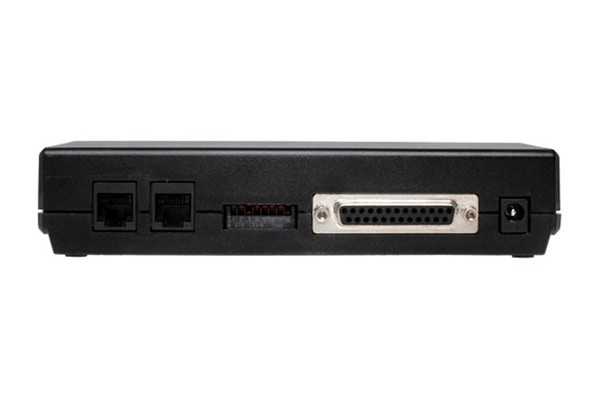

- External 8 position DIP switch allows manual configuration of specific critical settings

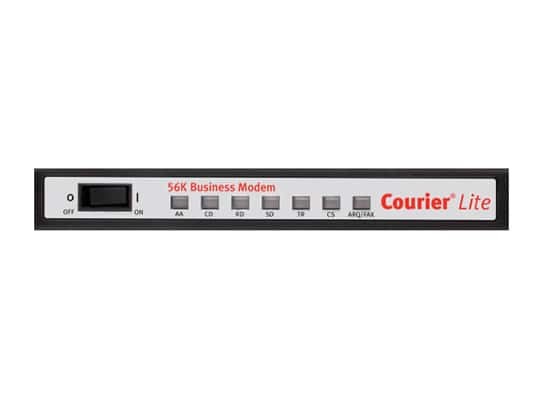

- Extra LEDs for better monitoring of serial signals
- Precise manual volume control
- Permanently store preferred modem default settings
Footnotes
* Capable of receiving at up to 56 Kbps and sending at up to 48 Kbps (or 31.2 Kbps with V.90 server). Due to FCC regulations on power output, receiving speeds are limited to 53.3 Kbps. Actual speeds may vary. V.92 and V.90 features require compatible phone service and support from your Internet Service Provider (ISP). USR modems featuring V.92 enhancements are backward compatible and will negotiate the highest possible speed when connecting to an ISP.
** Support for 64 bit operating systems requires a driver update (available in the support section of this website). Support for newer Operating Systems may also be available.
‡ Courier Lite (USR5686G-PRO) is the recommended replacement for Courier USR3453C, but features and specifications do vary. It is suggested to verify requirements before purchasing replacement units.
Additional resources
For manuals and documents, videos, firmware and other product information please visit the support page.

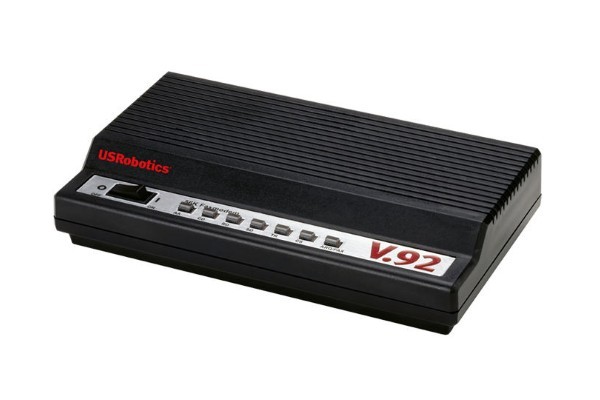

USR5686G-PRO datasheet
The USR Courier Lite 56K Business Modem with V.Everything technology provides secure, reliable analog connections
Video library
Browse our library of videos specifically focused on products and technologies that may be more complex than the usual products offered
Support - stay connected
Keep your product running at its peak performance level. Find upgrades, drivers, manuals and other helpful support materials and information

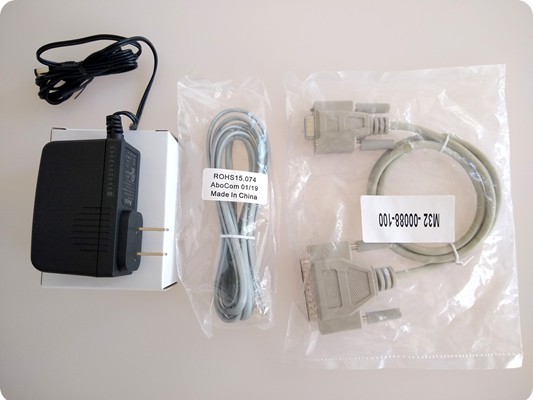

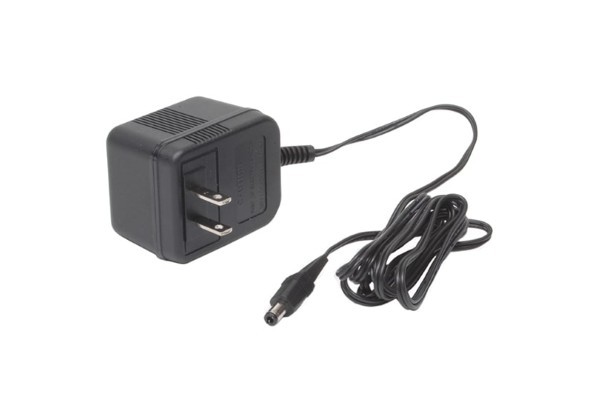

USR5686-ACC US power supply - MSRP $23.99
Power supply for US use only - for any questions or to inquire about purchasing, fill out the sales support form

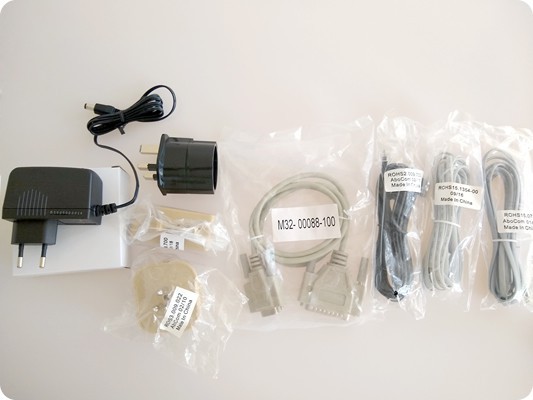

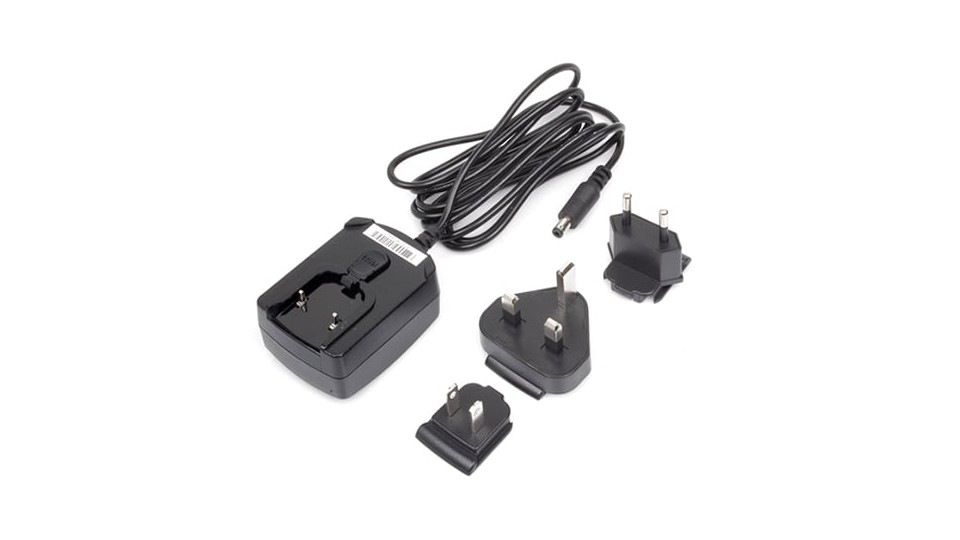

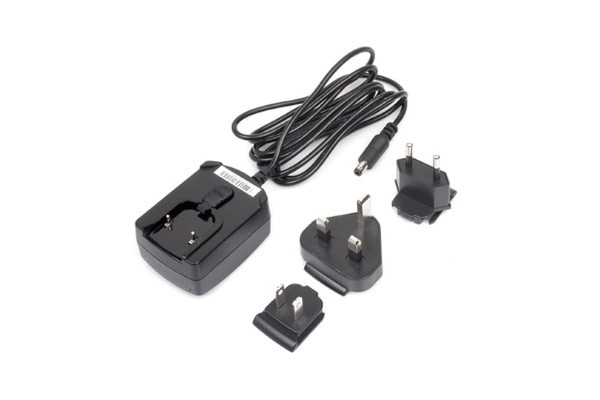

USR5686-ACC International power supply - MSRP $48.49
Automatically handles global power variations from 100V to 240V, includes alternate plugs for use in other regions
Global accessory kits: accessory kit contents
USR013453A-ACC, USR043453A-ACC, USR243453A-ACC, USR3453CIEC-ACC
