USR® Cellular M2M Gateway provides LAN-to-WWAN routing ideal for traditional M2M and IoT applications around the world.
USR3513 PTCRB-approved module (North America); USR803513 GCF-approved module (Europe).
The new USR® Courier® M2M 4G LTE Cat 1 Cellular Gateway provides cost-effective LAN-to-WWAN small-volume data transfer on all major 4G cellular networks. Affordable Cat 1 hardware reduces overall costs significantly while lowering the entry barriers to a wide range of M2M solutions making for an easier transition from analog to a long-term cellular solution.
With an embedded serial port, the gateway allows quick implementation for a wide variety of serial-based systems already out in the field — making it ideal for M2M serial applications including remote maintenance and control, Point-of-Sale, ATMs, monitoring, and automation. The embedded HTML-based GUI makes initial configuration simple and fast, with remote configuration available after deployment. For reliable, secure persistent connections rely on USR’s international cellular modems and gateways for mission-critical applications.
USR3513 features
M2M partnerships for a complete solution
- Access to MVNO with no volume restrictions offering worldwide SIMs and data plans
- Provisioned SIMs available for immediate drop ship for qualified customers*
- Dedicated Sales and Engineering staff available to help plan M2M solutions
Courier brand
- Reliable modems trusted by IT admins for over 30 years
- Business class, rock solid quality you can depend on for mission critical applications
Security and reliability
- Encrypted cellular connections when combined with a network operator's secure tunnel prevent eavesdropping and block unauthorized access*
- All software and configuration images are protected with digital signatures with rollback safety
- Built-in persistent and reliable connectivity ideal for remote management solutions
- Username and password-based security mechanisms protect all management functions
- Wired LAN and WAN connectivity facilitates compliance with strict medical safety requirements
Easy setup
- Simple and fast installation with custom settings for each device
- Change network carriers in less than a minute
- User friendly GUI (Graphical User Interface) for configuring SIMs, firewalls, port filtering, and monitoring status
Industrial quality and design
- Compact design ideal for branch offices with small IT closets or small off-site locations in need of remote management
- Rugged steel housing for use in harsh conditions
- Concealed SIM slot discourages unauthorized removal of SIM
- Versatile mounting options to increase stability and security
Cellular networks
- 4G LTE Category 1
- 3G Fallback for AT&T and T-Mobile
Regulatory approvals
- PTCRB-approved module
- FCC, IC
Multiple interfaces
- RS-232/RS-485 (DB9) Serial interface for easy communication with console ports, ATMs, digital signage, and meters
- 10/100 RJ45 Ethernet to connect to LANs, ATMs, and POS systems (credit card processors)
- 10/100 RJ45 WAN to connect to WAN Network
Advanced features
- Web-based remote configuration capability via static IP
Footnotes
Two-year limited manufacturer warranty from date of purchase. Click here for full warranty information.
* Services dependent on MVNO partnership for qualified customers, subscriptions may be required.
Additional resources
For manuals and documents, videos, firmware and other product information please visit the support page.

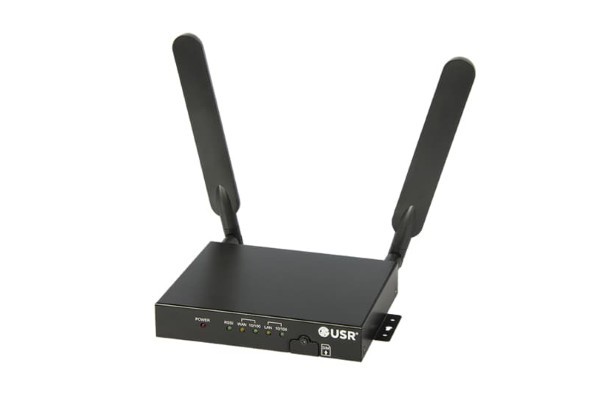

USR3513 datasheet
The USR Cellular M2M Gateway provides LAN-to-WWAN routing ideal for traditional M2M and IoT applications around the world
Video library
Browse our library of videos specifically focused on products and technologies that may be more complex than the usual products offered
Support - stay connected
Keep your product running at its peak performance level. Find upgrades, drivers, manuals and other helpful support materials and information
Transitioning from analog to cellular
Many M2M customers are considering the move from analog to cellular, but may not be sure what that entails
Frequently asked questions (FAQ)
Why can’t I use any cellular modem as a drop-in dial-up modem replacement?
Most cellular networks use a different type of technology that isn't compatible with dial-up analog systems. The high level answer is that most cellular data networks are packet based, rely on IP addresses, and are client/server whereas dial-up systems are peer-to-peer direct connection and rely on phone numbers which normally cannot communicate without additional hardware and/or software that could complicate how a solution works.
How much can I expect to save by replacing analog modems with cellular modems or gateways?
The cost of analog phone lines is on average $50 per month per line in North America. Cellular services when pooled can provide even greater cost savings with small data packages and low data volumes. The cost savings increase as the volume goes up, whereas the dial-up monthly expenses are consistent but pricey.
Can I use the SIM from my phone for a cellular modem or gateway?
Possibly. Depending on how your SIM is provisioned, it may allow a cellular modem or gateway to originate a connection to the IP address of a TCP/IP server on the Internet. If your SIM does work, you won’t have M2M features like static IP address, data pooling, peer-to-peer routing, or host-to-device VPN.
Can I connect to the IP address reported by the USR3513?
When the cellular service is provided by a Mobile Network Operator (MNO), the IP address reported by the USR3513 GUI may be public and routable. Normally this IP address provided by the MNO will be dynamic so it will change periodically, and the MNO may block access to this IP address with a firewall.
When the cellular service is provided by a Mobile Virtual Network Operator (MVNO), the IP address reported by the USR3513 GUI is not public and routable. The reported IP address is used only by the MVNO to contact the cellular network. The MVNO will translate the IP address using Network Address Translation (NAT) and provide you with a different routable IP address. The USR3513 cannot report that IP address. The MVNO will control whether your IP address is private or public, and static or dynamic.
