Portable Gigabit Ethernet Aggregation TAP (USB monitoring) - USR4524-MINI
With 1 network connection and 1 uni-directional USB 3.0 monitor connection.
Contact usSmall, compact full-duplex gigabit troubleshooting and field testing.

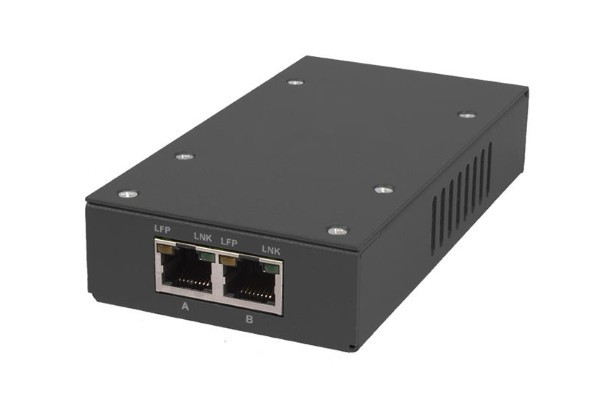

The USR® Portable Gigabit Ethernet Aggregation TAP with USB monitoring provides a compact and convenient tool for field testing and troubleshooting that easily fits with your laptop into a carrying case or backpack. Don’t worry about a bulky power supply, this TAP is powered over USB 3.0 from your laptop.
Quickly install, observe, and monitor 100% of your ethernet network traffic between two devices, while maintaining invisibility and eliminating SPAN port contention, oversubscription, and configuration errors.
The highly efficient portable TAP faultlessly combines and processes both the TX and RX streams of data into a single data stream, allowing any connected monitoring device (analyzer, IDS, probe) to receive a 2Gbps stream of full-duplex data over a USB 3.0 connection. Normally powered over USB 3.0, the TAP can also use a USR VersaPower TAP external power supply if your laptop has older USB ports. The TAP passes PoE between the connected devices, so monitoring Power Over Ethernet networks is no problem.
Wide compatibility with Windows, Linux, and Mac operating systems creates a flexible network monitoring solution that provides portable, reliable access to your gigabit ethernet segments.
Product availability
USR4524-MINI features
Monitoring and analysis
- Full-duplex monitoring for single interface monitoring tools running on a laptop
- Wider range of tools available with USB connection
- Improved visibility into the network - including VLAN tags
Aggregating data
- Monitor all network traffic from two different sources
- Improve network troubleshooting by viewing both sides of a full-duplex conversation
- Combine both directions of a full-duplex data stream in a single trace file
- Utilize single USB probes for advanced monitoring or hardware reduction
Network stability
- Fault-tolerant
- Eliminate SPAN port contention, oversubscription, and configuration errors
- Improve overall switch performance by removing port mirror degradation while freeing valuable ports
- Link Failure Propagation for High Availability designed networks ensures instant switch to the secondary link to maintain 100% uptime
Simple installation
- USB Plug-and-play means simple and fast deployments
- Compatible with most major operating systems: Windows, Linux, and Macintosh
- Auto negotiates settings for 10/100/1000 Mbps network speeds
- Auto-MDI/MDI-X
- Single network break for permanent installation
Security and reliability
- Power over USB 3.0
- Passes PoE (Power over Ethernet)
- USR4520-ACC VersaPower TAP kit available for AC/DC power
- Failsafe inline design allows network connectivity in the event of a power failure
- Unidirectional and invisible to other devices on the network making it impossible to access or infiltrate connected monitoring and analysis tools
