56K* USB Controller Dial-up External Faxmodem with voice - Discontinued - USR5637

High performance V.92 modem.

NOTE: The USR5637 has been discontinued.

The USR Softmodem (USR5639) is the recommended replacement in North America. The USR5639 does not support voice connections, modem on hold, v.22 fast connect, and some operating systems. See the transition document for details.

High performance V.92 modem

The USR® 56K USB modem, now with voice, delivers the performance and reliability USR is known for, in a compact, flexible form factor. This controller-based modem integrates powerful communications processing functions into the modem itself, for assured performance without sapping your computer's processing power. It is also broadly compatible across major operating systems including Linux, Windows and Macintosh (including Windows Server 2016, Windows 10, Sierra§, El Capitan, and Yosemite). V.22 Fast Connect, which reduces the connection sequence time for very small data transfers, makes this modem ideal for Point of Sale (POS) systems. The USB modem also supports USR Modem on Hold application to screen incoming voice calls while online, and to answer calls without losing your internet connection — no second phone line is needed.

Product availability

North America

Product Code: USR5637

Discontinued

International

Product Code: USR805637

Discontinued in Europe/UK

Contact

Get in touch for the latest information on Export Control (ECCN & HTS)

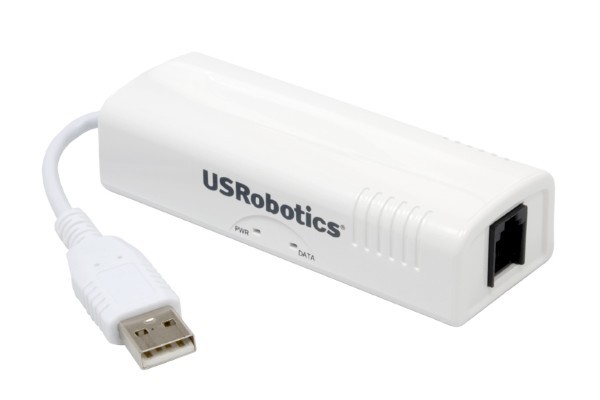

USR5637 product images

Front view

Front detail

Side view

Top view

USR5637

USR5637 features

USB convenience and ease of use

Simple USB Plug and Play installation
Hot-swappable (installs/uninstalls automatically)
Bus-powered so it doesn't require an external power supply

Voice features‡

Perfect for creating a Telephone Answering Device (TAD)
DTMF / Tone Generation and Reporting
Configurable 8 or 16 bit voice compression
7200, 8000, and 11025 sampling rates

Advanced features and functionality

Send and receive faxes through your computer while running other applications
Supports group faxing and timed faxing
Permanently store preferred modem default settings

Get the speed you need

Fast Connect (V.22) allows 1200 bps connections without error control in about 3 seconds, making this modem ideal for POS and ATM transactions that require lightning fast connections
Quick Connect (V.92) reduces the time it takes to establish your dial-up Internet connection
V.92 lets you send attachments up to 50% faster

Powerful management tools

USR Modem on Hold application lets you:

Screen incoming calls so you can take the important ones†
Take calls while online without dropping your Internet connection — there's no need for a second phone line

Global regulatory approvals

Approved for US, Canada, Europe, Israel, South Africa, Australia, Hong Kong, South Korea, New Zealand, Singapore, and Taiwan
USR5637-OEM approved for Japan, Phillipines
Qualified for additional worldwide regulatory approvals, license fee for full approval

Upgradable software and excellent compatibility

Firmware upgradable and downloadable software ensure that this modem will continue to meet your changing needs
Compatible with most major operating systems, Windows, Linux and Macintosh including Windows Server 2012 R2, Windows 10‡, Sierra§, El Capitan, and Yosemite— 32 and 64 bit

Footnotes

* Capable of receiving at up to 56 Kbps and sending at up to 48 Kbps (or 31.2 Kbps with V.90 server). Due to FCC regulations on power output, receiving speeds are limited to 53.3 Kbps. Actual speeds may vary. V.92, V.90, and V.22 features require compatible phone service and support from your Internet Service Provider (ISP). USR modems featuring V.92 enhancements are backward compatible and will negotiate the highest possible speed when connecting to an ISP. ** USB Softmodem (USR5639) is the recommended replacement for USB Faxmodem USR5637, but features and specifications do vary. It is suggested to verify requirements before purchasing replacement units.

† Call Waiting service required for using USR Modem on Hold application and Modem on Hold. Call Waiting/Caller ID service required for utilizing Caller ID capability.

‡ Voice features require voice firmware available at here. Voice messaging requires additional third party software. Software included with the product enables data/fax support only. Voice features are available on Windows 10 after installing the Cumulative Update for Windows 10 Version 1607 (KB3206632).

§ Fax features no longer supported in macOS Sierra Version 10.12.

Additional resources

For manuals and documents, videos, firmware and other product information please visit the support page.
